TV Remote
I use a Broadlink RM mini 3 to control my tv, soundbard, roku and humax devices. So perhaps the codes below will help you or not. I have encapsulated my calls to the remote into a single separate script which I can use a drop-down to send from other automations without having to using magical strings.
I also haved configured some imitation screens for the physical remotes in home assistant which can be used link the physical ones.
Homepage quick commands
type: grid
cards:
- type: horizontal-stack
cards:
- type: vertical-stack
cards:
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: television - power
icon: mdi:power
icon_color: red
- type: template
icon: mdi:import
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: television - input
content: TV Input
grid_options:
columns: 6
rows: auto
- type: custom:mushroom-chips-card
chips:
- type: template
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - power
icon: mdi:power
icon_color: red
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - mute
icon: mdi:volume-mute
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - volume down
icon: mdi:volume-minus
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - volume up
icon: mdi:volume-plus
grid_options:
columns: 6
rows: auto
grid_options:
columns: 6
rows: auto
- type: vertical-stack
cards:
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - power
icon_color: red
icon: mdi:power
- type: template
tap_action:
action: navigate
navigation_path: /lovelace/humax
icon: mdi:menu-open
content: Humax
grid_options:
columns: 6
rows: auto
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - play pause
icon: mdi:play-pause
icon_color: green
- type: template
content: Roku
tap_action:
action: navigate
navigation_path: /lovelace/roku
icon: mdi:menu-open
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - home
icon: mdi:home-outline
grid_options:
columns: 6
rows: auto
grid_options:
columns: 6
rows: auto
grid_options:
columns: full
column_span: 4
visibility:
- condition: numeric_state
entity: zone.home
above: 0
- condition: numeric_state
entity: sensor.ikea_kitchen_tretakt_plug_power
above: 10
Roku imitation remote
type: sections
max_columns: 1
title: Roku
path: roku
icon: mdi:remote
sections:
- type: grid
cards:
- type: vertical-stack
cards:
- type: custom:mushroom-chips-card
chips:
- type: action
hold_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - back
icon: mdi:keyboard-backspace
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - home
icon: mdi:home-outline
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - up
icon: mdi:arrow-up-bold
icon_color: purple
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - left
icon: mdi:arrow-left-bold
icon_color: purple
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - right
icon: mdi:arrow-right-bold
icon_color: purple
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - down
icon: mdi:arrow-down-bold
icon_color: purple
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - instant replay
icon: mdi:replay
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - ok
icon: mdi:checkbox-marked-circle
icon_color: purple
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - * menu
icon: mdi:asterisk
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - rewind
icon: mdi:rewind
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - play pause
icon: mdi:play-pause
icon_color: green
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: roku - fast forward
icon: mdi:fast-forward
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - mute
icon: mdi:volume-mute
icon_color: yellow
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - volume down
icon: mdi:volume-minus
icon_color: yellow
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - volume up
icon: mdi:volume-plus
icon_color: yellow
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
header:
card:
type: markdown
text_only: true
content: "# Roku"
cards: []
subview: true

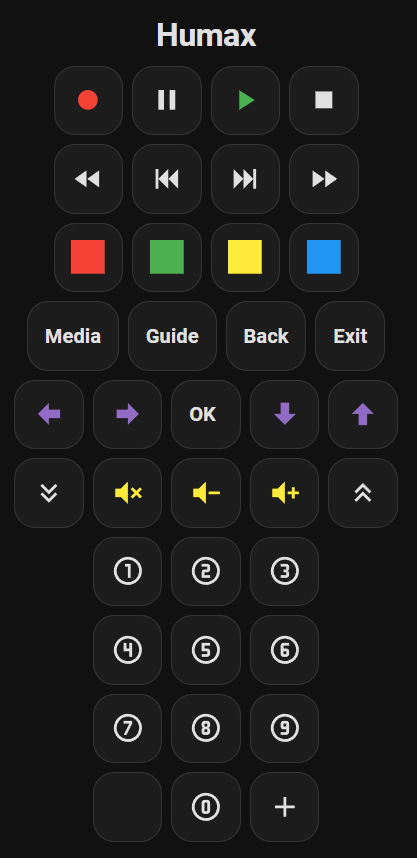

Humax imitation remote
type: sections
max_columns: 1
subview: true
path: humax
title: Humax
icon: mdi:remote
sections:
- type: grid
cards:
- type: vertical-stack
cards:
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - record
icon: mdi:record
icon_color: red
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - pause
icon: mdi:pause
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - play
icon: mdi:play
icon_color: green
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - stop
icon: mdi:stop
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
alignment: center
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - rewind
icon: mdi:rewind
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - skip backward
icon: mdi:skip-backward
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - skip forward
icon: mdi:skip-forward
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - fast forward
icon: mdi:fast-forward
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - red
icon: mdi:solid
icon_color: red
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - green
icon: mdi:solid
icon_color: green
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - yellow
icon: mdi:solid
icon_color: yellow
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - blue
icon: mdi:solid
icon_color: blue
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
alignment: center
- type: custom:mushroom-chips-card
chips:
- type: template
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - media
content: Media
- type: template
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - guide
content: Guide
- type: template
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - back
content: Back
- type: template
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - exit
content: Exit
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
alignment: center
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - left
icon: mdi:arrow-left-bold
icon_color: purple
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - right
icon: mdi:arrow-right-bold
icon_color: purple
- type: template
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - ok
content: OK
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - down
icon: mdi:arrow-down-bold
icon_color: purple
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - up
icon: mdi:arrow-up-bold
icon_color: purple
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - p down
icon: mdi:chevron-double-down
- type: action
icon_color: yellow
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - mute
icon: mdi:volume-mute
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - volume down
icon: mdi:volume-minus
icon_color: yellow
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: soundbar - volume up
icon: mdi:volume-plus
icon_color: yellow
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - p up
icon: mdi:chevron-double-up
alignment: center
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 1
icon: mdi:numeric-1-circle-outline
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 2
icon: mdi:numeric-2-circle-outline
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 3
icon: mdi:numeric-3-circle-outline
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
alignment: center
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 4
icon: mdi:numeric-4-circle-outline
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 5
icon: mdi:numeric-5-circle-outline
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 6
icon: mdi:numeric-6-circle-outline
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
alignment: center
- type: custom:mushroom-chips-card
chips:
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 7
icon: mdi:numeric-7-circle-outline
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 8
icon: mdi:numeric-8-circle-outline
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 9
icon: mdi:numeric-9-circle-outline
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
alignment: center
- type: custom:mushroom-chips-card
chips:
- type: template
- type: action
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - 0
icon: mdi:numeric-0-circle-outline
- type: template
tap_action:
action: perform-action
perform_action: script.remote_send
target: {}
data:
button: pvr - opt+
icon: mdi:plus
card_mod:
style: |
ha-card {
--chip-height: 60px;
}
alignment: center
header:
card:
type: markdown
text_only: true
content: "# Humax"
layout: center
badges_position: bottom
badges_wrap: wrap
Broadlink codes
With the help of learning from my existing remotes and for roku information on the codes from RemoteCentral.com and using the Sensus IR & RF Code Coverter.
- TV Samsung
- Soundbar Yamaha
- Roku 4200X - Roku 3
- Humax PVR
{
"version": 1,
"minor_version": 1,
"key": "broadlink_remote_ec0baea38ef7_codes",
"data": {
"television": {
"power": "JgDSAJSUFTYUNhQ1ExIVERQRFBEUERM2FDYVNRUPFRATExQRERQSExQ1FRETERQRERQUERQRETcVEhQ1FTQTNxY0FjQVNRUABgCWkhQ2EzcUNhMTExISExISExMSNxM3EzcTEhMSEhMUERITEhITNhQTEhITEhITExISExI2FBIUNRQ2FTUUNhQ2FTUUAAYBlJQUNhU1FTUVEBQSFBETERQSEzUTNxM3FREUERQRExIUERMRFDUVEREUFBEUEBQSFBEQORQRETgVNRU1FTUVNRU1EwANBQAAAAAAAA==",
"input": "JgDSAJaSETkTNxI4FBERFBMTERMSExA5EzcSOBIUFBESExAUERQRORM2FRIRNxQSEhMQFRE4ExMSERI4EhMVNRI4EjgUExIABgGWkhE5ETkSNxURERQRExURERMRORQ2EjgSExQREhQQFBEUEDkUNhEUEjgVEREUEBQUNRIVEBQROBURETgSOBI4EhQQAAYElpEVNRI4EjgSFRAUERQQFREUEDkRORI4EhQQFBEUERQRFBA5ETkSFBA5ERQSExEUEzYSFBQRETgSFBE4EjgSOBIUEAANBQAAAAAAAA=="
},
"soundbar": {
"power": "JgBQAAABJ5MTExITEhMTNhM3EjcTNhMTETgTNhM2FBITEhMSEhMTNxITExITNhM3ExITEhM2EzcTNhM3EhMTEhM2EjgTEhMSEwAFGwABJ0oTAA0FAAAAAAAAAAA=",
"mute": "JgBYAAABKZEVERQRFBEUNRQ1FTUUNRURFDUUNRU1FBEUERQRFBEVNRQRFBEUNRU1FDUUERUQFTUUNRU0FREUEhMSEzUVNRQRFAAFGgABKUgUAAxMAAEpSBQADQU=",
"volume up": "JgBQAAABKZEUERUQFREUNRQ1FTUUNRQRFDYUNRQ1FREUERQRFBEUNRURFDUUNRU1FDUUERURFBEUNRQRFBEVEBURFDUUNRU1FAAFGgABKUgUAA0FAAAAAAAAAAA=",
"volume down": "JgBQAAABKZEUERUQFREUNRQ1FTUUNRQRFTUUNRQ1FREUERQRFBEUNRU1FDUUNhQ1FDUVERQRFBEUERQRFBEVEBURFDUUNRU1FAAFGgABKUgUAA0FAAAAAAAAAAA=",
"bluetooth": "JgBQAAABKZEVEBURFBEUNRQ1FTUUNRUQFTUUNRU0FREUERQRFBEUNRU1FBEUERQ1FREUNRQRFRAVEBU1FDUVEBU1FBEUNRU1FAAFGgABKUcVAA0FAAAAAAAAAAA=",
"tv": "JgBQAAABJ5MUERMSExMTNhM2EzcTNhITEzcTNhI3ExMTEhITExISNxI4EzYTNhI4EjcSExI4EjcTEhIUERQSExIUETcSExIUEgAFHAABJkoSAA0FAAAAAAAAAAA=",
"surround": "JgBQAAABJpQSExITEhMSOBI3EjcSOBITEjcSOBI3EhMSExIUEhMSNxITEhMSOBITEjcSOBITEjcSOBI3EhMSNxMTEhMSNxITEgAFHQABJkoSAA0FAAAAAAAAAAA=",
"stereo": "JgBQAAABKZEUERURFBISNhQ1FDYUNRQRFDYUNRQ1FREUERQRFBETNhQSExIUERQREzYUEhM2ExITNhM3EzYTNxMSEzYSExI4EgAFHAABJksSAA0FAAAAAAAAAAA="
},
"roku": {
"* menu": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISEhISEhISNxI3EhISEhI3EjcSNxI3EhISEhI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISEhISEhISNxI3EjcSEhI3EjcSNxI3EhISEhISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISEhISEhISNxI3EjcSEhI3EjcSNxI3EhISEhISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"back": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSNxISEhISNxI3EhISNxISEhISNxI3EhISEhI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSNxISEhISNxI3EjcSNxISEhISNxI3EhISEhISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSNxISEhISNxI3EjcSNxISEhISNxI3EhISEhISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"down": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EjcSEhISEjcSNxISEhISEhISEjcSNxISEhISNxI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EjcSEhISEjcSNxISEjcSEhISEjcSNxISEhISNxISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EjcSEhISEjcSNxISEjcSEhISEjcSNxISEhISNxISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"fast forward": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISNxISEjcSEhI3EhISEhI3EhISNxISEjcSEhI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISNxISEjcSEhI3EjcSEhI3EhISNxISEjcSEhISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISNxISEjcSEhI3EjcSEhI3EhISNxISEjcSEhISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"home": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EjcSEhISEhISEhISEhISEhISEjcSNxI3EjcSNxI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EjcSEhISEhISEhISEjcSEhISEjcSNxI3EjcSNxISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EjcSEhISEhISEhISEjcSEhISEjcSNxI3EjcSNxISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"left": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSNxI3EjcSEhISEhISNxISEhISEhISEjcSNxI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSNxI3EjcSEhISEjcSNxISEhISEhISEjcSNxISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSNxI3EjcSEhISEjcSNxISEhISEhISEjcSNxISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"ok": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSEhI3EhISNxISEhISNxISEjcSEhI3EhISNxI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSEhI3EhISNxISEjcSNxISEjcSEhI3EhISNxISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEjcSEhI3EhISNxISEjcSNxISEjcSEhI3EhISNxISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"play pause": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISNxI3EhISEhI3EhISNxI3EhISEhI3EjcSEhI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISNxI3EhISEhI3EjcSNxI3EhISEhI3EjcSEhISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISNxI3EhISEhI3EjcSNxI3EhISEhI3EjcSEhISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"rewind": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISNxISEjcSNxISEhISNxI3EhISNxISEhISNxI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISNxISEjcSNxISEjcSNxI3EhISNxISEhISNxISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISNxISEjcSNxISEjcSNxI3EhISNxISEhISNxISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"right": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISNxI3EhISNxISEhISEhI3EhISEhI3EhISNxI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISNxI3EhISNxISEjcSEhI3EhISEhI3EhISNxISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISNxI3EhISNxISEjcSEhI3EhISEhI3EhISNxISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"up": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISEhI3EjcSEhISEhISEhI3EjcSEhISEjcSNxI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISEhI3EjcSEhISEjcSEhI3EjcSEhISEjcSNxISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxI3EhISEhI3EjcSEhISEjcSEhI3EjcSEhISEjcSNxISEgAFGA0FAAAAAAAAAAAAAAAAAAA=",
"instant replay": "JgDYAAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISEhI3EjcSNxI3EhISNxI3EjcSEhISEhISEhI3EgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISEhI3EjcSNxI3EjcSNxI3EjcSEhISEhISEhISEgAFGAABKJMSEhI3EhISNxISEjcSNxI3EhISNxISEhISEhISEjcSNxISEhISEhI3EjcSNxI3EjcSNxI3EjcSEhISEhISEhISEgAFGA0FAAAAAAAAAAAAAAAAAAA="
},
"pvr": {
"up": "JgBUAAABKJQSExMSERMTERQRFBMSExETExEVEBQQFRISNhITEhISFBM2FBESExEUEzUVEhMSEhEVERQ0FTUUNRURETgROBE4EgAGKwABKEgVAAxVVgANBQAAAAA=",
"down": "JgBgAAABKpEUEhITFBETEhQQEhMTEhQRFBESExITFBATNRURExMSEhUzFBEUNhQSEjYVERQRExEUERU0FRAVNBQRFDUUNRU1FAAGKAABKUgUAAxWAAEoSRUADFUAASdJFAANBQAAAAAAAAAA",
"left": "JgBgAAABK5EVERQQFRAVEBUREhIUERQREhIVEBUREhMSNhUQExIVEBMSFDQVERMSEzYUERQRFBESNhURFDUVNBUQFTQVNBU0FgAGJwABK0YVAAxVAAEpSBUADFQAASlIFQANBQAAAAAAAAAA",
"right": "JgBYAAABKJIVERQSEhEUEhQREhITEhQSExETEhMSFRASNhURExIVEBISFBEUNRQSFDQVEBQSFBEUNBQ1FRETNhUQFTMVNRQ1FAAGKQABKkcVAAxVAAEoSBUADQU=",
"ok": "JgBgAAABKZIVERQRExEVERQREhMUEBMSExITERURFBETNRUQFRAVEBU0FTQVERMSFDQVERUQExEVEBUREjYVNBURFDQVNBU0FgAGJwABK0YVAAxVAAEpSBUADFQAASlIFQANBQAAAAAAAAAA",
"power": "JgBQAAABKJETEhQQEhMVDxUPFBERExQRFQ8VDxUQFBAUNRUQFQ8UERQQFBEVDxUPFRAUEBITFBAVNBY0FDUVNRQ2FDUUNhQ1EwAGHAABKEgUAA0FAAAAAAAAAAA=",
"guide": "JgBgAAABKZAUERQQFBETERQQFBEVDxQRExEUEBQRExEVNBQREhIUERU0EjgVDxQ2FDUSExQQFRARExQQFDYSEhQRFDUUNhU0FAAGGwABKUcTAAw9AAEpRhUADDwAAShHFAANBQAAAAAAAAAA",
"media": "JgBgAAABKZAVEBETFBASExUPFBEVDxQQEhMVDxUQExETNhQRFBAUERQ1EjgSNxI4EhISOBI3EhMUEBITFBASEhM3FBAVEBI3EgAGHQABKEcUAAw9AAEpRhUADDsAAShIFQANBQAAAAAAAAAA",
"exit": "JgBIAAABJpMSEhUQFBASExISEhISExISEhMUEBITExESNxITEhISEhITEjcSOBISEjgSEhUQFBAVNBITFBAVNRISEjgSNxI4FAANBQ==",
"back": "JgBYAAABJpMUEBQRExEUERISFBAVEBISEhMTERMREhMSNxITExEVDxI4EhIVEBMRFRAUEBM2EhMSEhI4EjcSOBI3EjgSEhI4EgAGHQABJkkSAAw+AAEmShUADQU=",
"p up": "JgBQAAABJpMSExQQEhIVEBQQEhMUEBUPFRASEhISEhMUNRITEhISExQQEhISExQQEjgSEhISFRASNxI4EjcSOBISEjgSNxI4EgAGHQABKUYWAA0FAAAAAAAAAAA=",
"p down": "JgBQAAABKJEUEBUPEhMTERUPFBESEhITEhIUEBITFBAVNRISEhMSEhU0EjgSOBI3EhMUEBQQEhMUEBUQERMSEhI4EjcSOBI3EgAGHQABJkoSAA0FAAAAAAAAAAA=",
"list": "JgBYAAABJpMSEhUQFBAVEBISEhIVEBQQFRAUEBISFRAUNRITEhISExM2EhIVNRI3ExIUEBQ2EhISExI3EhMTERU0EjgSExM2EgAGHQABJkkTAAw+AAEmSRQADQU=",
"red": "JgBgAAABJpMSExQQEhMUEBISEhMSEhITFBASEhITEhISOBISEhISExISFBESNxI4EjcSExQQFBAUNhQ1FBEUEBQREzYSOBQ1FQAGGgABKUcUAAw8AAEpRxUADDsAAShHFgANBQAAAAAAAAAA",
"green": "JgBYAAABJpMSExQQEhISExISEhIVEBQQExITERISEhMTNhITEhIVEBQ1EhISOBI2EzgSEhUQFBAUERI3EhMSEhUPFDYTNhI4EgAGHQABKUYWAAw7AAEoRxQADQU=",
"yellow": "JgBYAAABJpMSEhUQFBASExQQEhIVEBQQEhISExISFRAUNRITExEVDxITFDUVEBQ1EjgSEhISExISNxITFDUSExQQFTUSNxI4EgAGHQABKUYUAAw9AAEpRhIADQU=",
"blue": "JgBYAAABJpMTEhMREhIUERMRFBERExQQFBESEhQQEhMSNxQREhIVEBQQEjcUNhI4EjcSExQQEhIVNRISEhMUEBISEjgSNxM3EwAGHAABJkoSAAw+AAEpRhYADQU=",
"play": "JgBcAAABKJAVEBQQFRESERQQFRAVDxUQExEUEBUQEhIUNhQQEhMUEBQQFRAUEBMSFBAUNRU1ExEVNRQ1FDYSOBQ1EhMRExM2FQAGGwABKEcUAAw8AAEnSRIADD7ZAA0FAAAAAAAAAAAAAAAA",
"pause": "JgBYAAABKZASEhUPExIUEBQRExEUEBITFBAVEBMRFBAUNhISEhMTERQRFDUSEhITExEUNhI3EhMTNhUQEjcSOBI3EhMSEhI4EgAGHb4AA6GYAAOhkgADn4MADQU=",
"stop": "JgBUAAABKZAVDxUQERMSEhUQFQ8VDxUQFQ8UERMRFQ8VNRQQFBEVDxQ2EzYVEBMRFBASOBI3FBEUEBITFDUUNhQ1FBERExQ2FQAGGocAA6J+AAOieAANBQAAAAA=",
"record": "JgBUAAABKJEUEBQQFRAVDxUQFQ8UEBUQFBASExUPFQ8VNRQQFRAVDxQ2FBAVDxYPEhIUNhQ1FRAVDxQ2ETgVNRQ1FRAVDxU1FAAGG3MAA6NwAAOjagANBQAAAAA=",
"rewind": "JgBQAAABKJESExMREhISExISFRAUEBISFBEVDxUQEhIVNRQQEhIVEBI3EhMSNxITFBASOBI3EhMUEBI3EhMVNBI4EhISExQ1EgAGHZwAA6KSAA0FAAAAAAAAAAA=",
"fast forward": "JgBMAAABJpMUEBMSFBATERQRExESExISFBAUERMRFBESNxITExESEhQRExESOBISFBASOBI3ExISNxI4EhMTNhI3ExIUERQ1EgAGHYEADQUAAAAAAAAAAAAAAAA=",
"skip backward": "JgBgAAABKpEVEBURFBESEhUQFRAVEBQRFBEVEBISExIVMxYREhIVEBUQFDQWNBUREhITNRY0FREVMxURFBETNRU0FREUEhM1FQAGKAABKEgVAAxVAAEoSBUADFYAAShIFQANBQAAAAAAAAAA",
"skip forward": "JgBYAAABK5EVEBEUERMVEREUEBURFBQQERQRFBQREBURNxIUFBEQFBE4EjcSNxIVFRAUNBU0FREUEREUEhIRNxI4FhARFBA4FQAGKAABJkoTAAxYAAEmShIADQU=",
"menu": "JgBgAAABKZITExMSExITEhMQFBEVEhQQFBETEhMSEhEUNhQRFBITERMSEzYTNhQ1FREUEhISExIUNBQSExITEhQ0FDUUNhQ1FAAGKQABKEgTAAxYAAEnSRUADFUAAShIFAANBQAAAAAAAAAA",
"opt+": "JgBYAAABJ5QSFBITExIQFBQQFBITERITFBITEhAUExIUNRQRERQUERMSETcVEhAUFBEUERA4EhQUNBURFDUUNRU0FTUTExA4EgAGKwABKEgUAAxWAAEmShIADQU=",
"sub": "JgAgAGAAA6RcAAOkWQADpFQAA6RTAAOkUQADpE8AA6RPAA0FAAAAAAAAAAA=",
"1": "JgBgAAABJ5QVEREUFBERFBMRFBERFBQRERQRExUQERQROBIUERQUEBE3EjgSFBETFRAVERQRExITEREUETcSOBI3EjcSOBI3EgAGKwABKEgUAAxXAAEnSRMADFcAASZKFQANBQAAAAAAAAAA",
"2": "JgBgAAABJ5UVEBQRFRATERISExMSEhMTEhMSExMREhMVNBYQFBASExMSFBEUNBMTExISExQREhMSNhM2FBIUNRU0FTUVNBU0FQAGKAABJ0kUAAxWAAEnSRQADFcAASdJFQANBQAAAAAAAAAA",
"3": "JgBYAAABK5ASFRQQERQRFBQQERQVERAVFBASExEUEBQVNBIUEhMUEBU0FRERNxMTERQUEBEVEBUUEBI2EhQVNBI3EzYSOBI3EgAGKwABJ0oVAAxVAAEmShUADQU=",
"4": "JgBgAAABK5EVEBITExEVERQRExITEhQQExIVEBQRExITNRQSFRAUEBQSEzUUNRQRFRETEhQRERMTNRUSFBETNRQ1FTUUNRQ1FQAGKAABKEkVAAxVAAEoSRQADFUAASZLFQANBQAAAAAAAAAA",
"5": "JgBgAAABK5AWERISFRAVEBMRFBEVERMSEhIVEBUQExEUNRURFRASEhUzFTUUNRURFRAUEhMRFRATEhISFBEVNBQ1FTQWNBQ1FQAGKAABK0UVAAxWAAEoSBUADFUAAShIFgANBQAAAAAAAAAA",
"6": "JgBgAAABJpQTExURFBASExEUFBARFBURExIUEBEUEhMUNBUREhMRFBQQERQSExQ1FREUEBITEhMROBU0FTQTEhU0EzYTNxM2EwAGKgABKkcVAAxVAAEnSRQADFYAAShIFQANBQAAAAAAAAAA",
"7": "JgBgAAABKJMUEhUQEhMSEhMSFBEUERQRFRASEhMSFBEUNRURFBAVEBU0FBIUEBUzFREVEBQRExIVEBUzFTUVERI2FTQVNRU0FQAGJwABK0YVAAxVAAEoSBUADFYAAShIFAANBQAAAAAAAAAA",
"8": "JgBgAAABK5EVDxYQFRAUERQRFBEVEBISExIVEBMSFBEUNBYQExEVERQRFDQVERQ0FREUERUQEhIVNBURFDQVERM1FTUVNBU0FQAGKAABKUgVAAxUAAEpSBUADFUAASlIFQANBQAAAAAAAAAA",
"9": "JgBgAAABK5ETEhQQExITEhUQEhMSExQRERMTEhMSFRASNxMSExIVDxM3EzYTEhM3EhMUEBMSExMSEhUPEzcTEhM2EzcSNxM2EwAGKgABJ0kTAAxYAAEpRxMADFcAAShJEgANBQAAAAAAAAAA",
"0": "JgBgAAABKZIVEBUQFRAUEhMSEhIVEBUQExEVEBQSEhMSNhUQFBEUERQRFBEUNBU0FRIUEBUQFRAVMxU1FRESEhU0FTQVNBU1FQAGJwABK0cUAAxVAAEpSBUADFQAASlIFQANBQAAAAAAAAAA",
"tv portal": "JgAkADoAA6U3AAOlNAADpzcAA6QzAAOnNQADpTQAA6UxAAOoMAANBQAAAAA=",
"i": "JgBgAAABKJIUERYRFBASExITFBAVEBUQExMUEBITEhMUNBUREhMSExI2EzcTExETEhMSExQ0FRESExITFDQVNRU0FTQVERE3EgAGKwABKkcSAAxYAAEmShIADFgAASZKEgANBQAAAAAAAAAA"
}
}
}
Then a script to make calling the codes a little easier, perhaps.
sequence:
- action: remote.send_command
metadata: {}
data:
num_repeats: 1
delay_secs: 0.4
hold_secs: 0
device: "{{ button.split(' - ')[0] }}"
command: "{{ button.split(' - ')[1] }}"
target:
entity_id: remote.remote
fields:
button:
required: true
selector:
select:
options:
- pvr - 0
- pvr - 1
- pvr - 2
- pvr - 3
- pvr - 4
- pvr - 5
- pvr - 6
- pvr - 7
- pvr - 8
- pvr - 9
- pvr - back
- pvr - blue
- pvr - down
- pvr - exit
- pvr - fast forward
- pvr - green
- pvr - guide
- pvr - i
- pvr - left
- pvr - list
- pvr - media
- pvr - menu
- pvr - ok
- pvr - opt+
- pvr - p down
- pvr - p up
- pvr - pause
- pvr - play
- pvr - power
- pvr - record
- pvr - red
- pvr - rewind
- pvr - right
- pvr - skip backward
- pvr - skip forward
- pvr - stop
- pvr - sub
- pvr - tv portal
- pvr - up
- pvr - yellow
- roku - * menu
- roku - back
- roku - down
- roku - fast forward
- roku - home
- roku - instant replay
- roku - left
- roku - ok
- roku - play pause
- roku - rewind
- roku - right
- roku - up
- soundbar - bluetooth
- soundbar - mute
- soundbar - power
- soundbar - stereo
- soundbar - surround
- soundbar - tv
- soundbar - volume down
- soundbar - volume up
- television - input
- television - power
alias: Remote Send
description: ""
icon: mdi:remote
